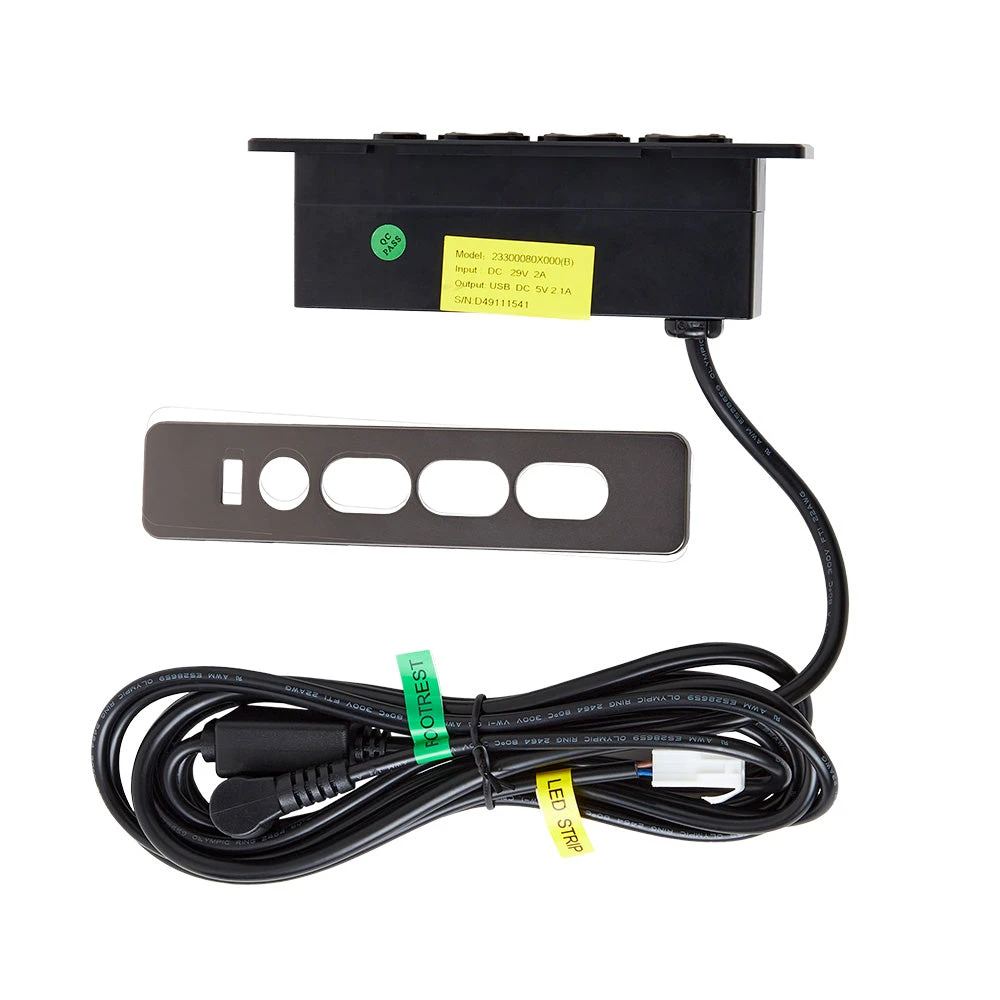

23300080X000(B) Recliner Side Switch 7 Button With USB

• This is the genuine 23300080X000(B) Recliner Switch, if your switch has the same model number, this switch will fit your chair seamlessly.

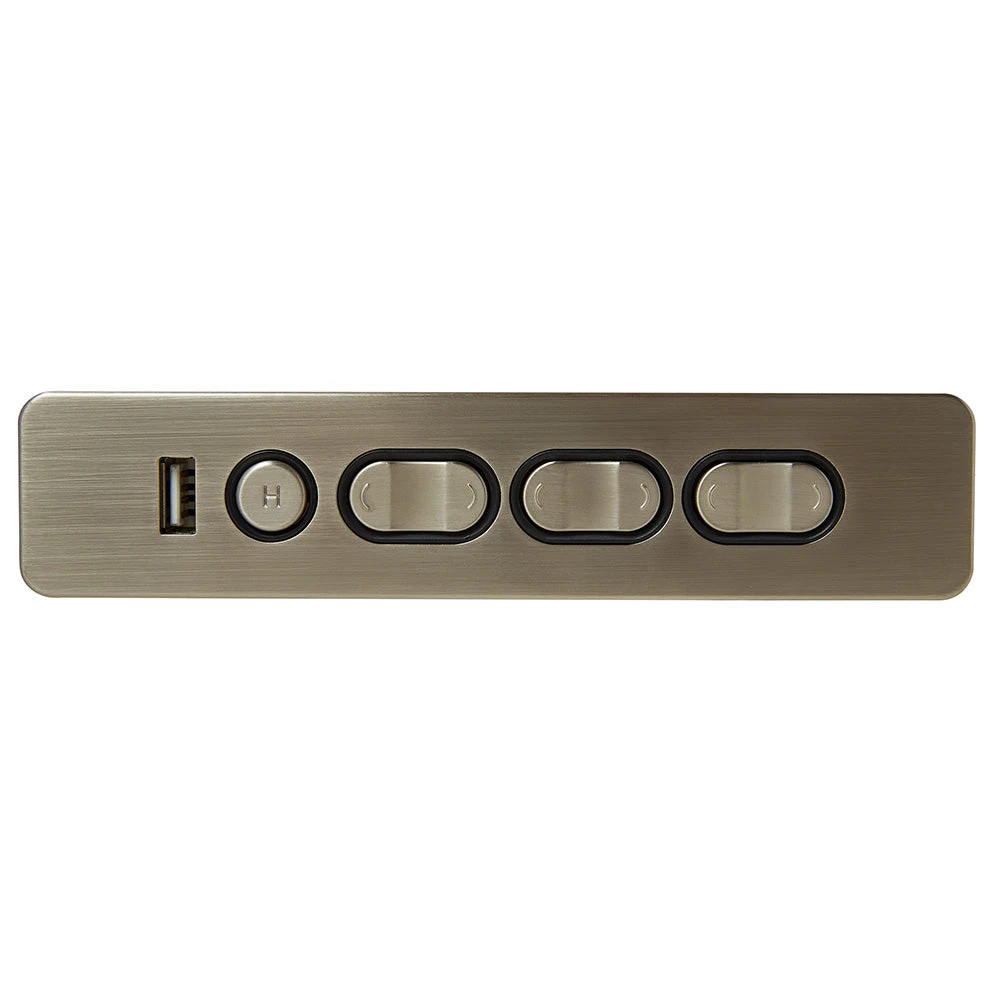

• The switch has 7 buttons, it is suitable for recliners with 2 linear actuator motors.
• With a USB charging port, you can use it to charge your mobile device.

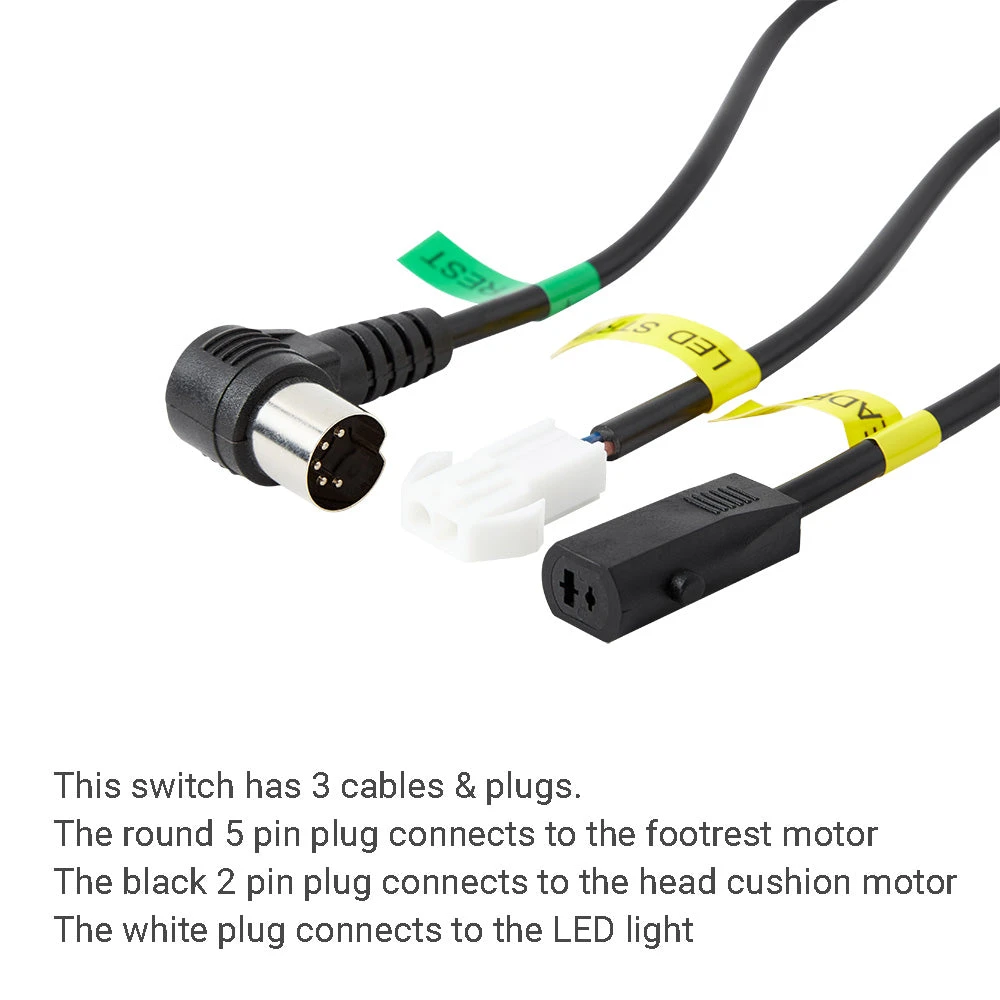

• This switch has 3 cables & plugs: The round 5 pin plug connects to the footrest motor; The black 2 pin plug connects to the head cushion motor; The white plug connects to the LED light



Specification

• Model Number: 23300080X000(B)
• Rated Voltage: 29V 2A
• USB port output: 5V 2.1A



Note:

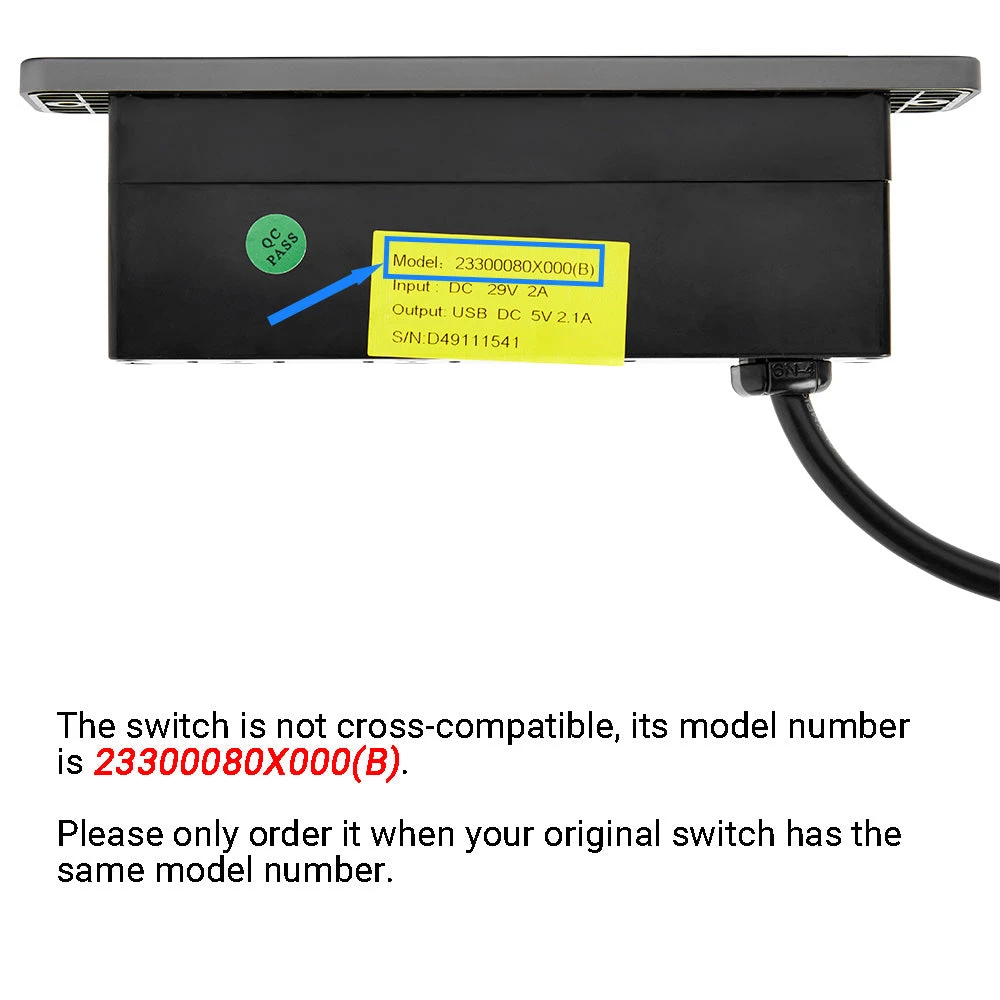

• The 23300080X000(B) is not a cross compatible switch, please only order when your switch has the same model number.
• The plastic cover of the switch is difficult to remove once it is locked. To facilitate your installation, the cover will be separated from the switch when shipping.
• When you are installing the switch, do not install the plastic cover until everything is done.
• After installing this switch to your chair, please operate all the actuator motors to the longest and shortest position a couple of times, so that the switch can identify the stroke of the motor.
• Avoid quick operation of the buttons: When responding to the switching operation, the current is relatively large, and quick operation is more likely to cause damage to the switch.
