KDH115-031 4 Buttons Switch Controller For Recliner/Lift Chair W/ USB

Warning:

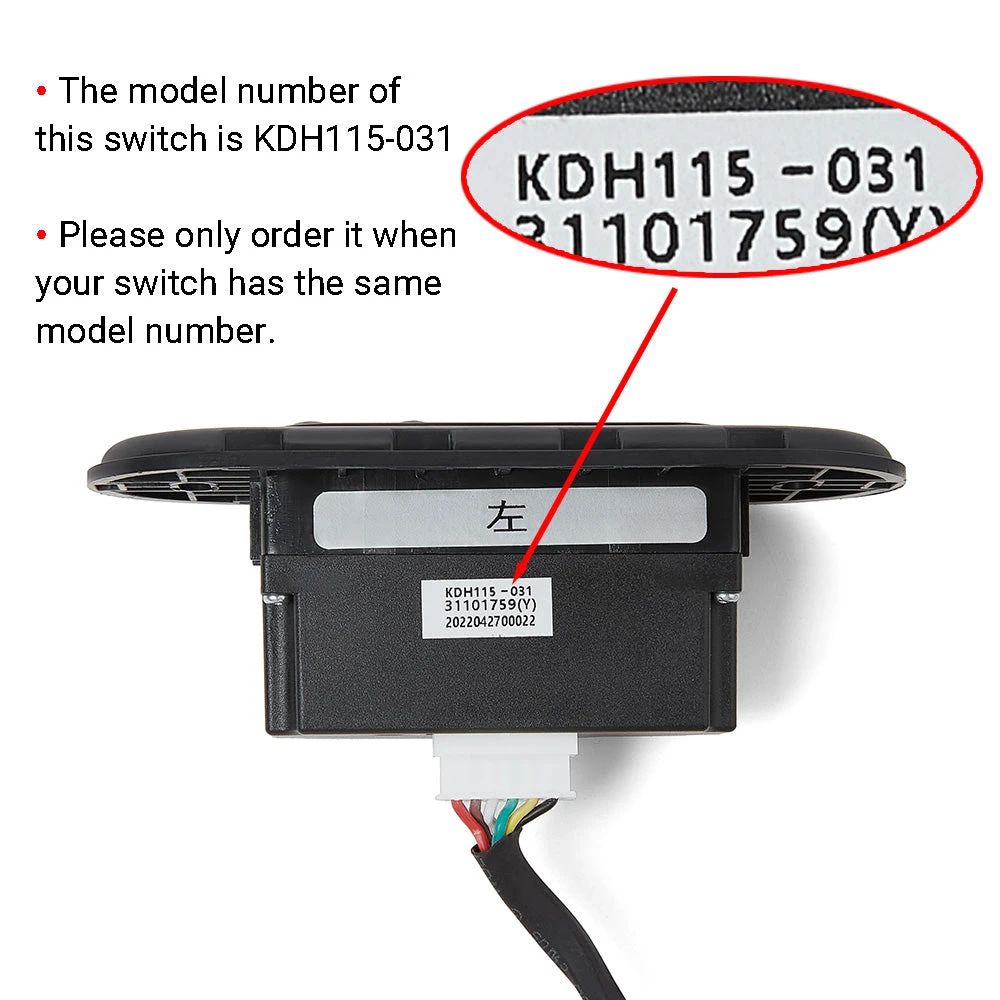

• The KDH115-031 is not a universal switch, please only order it when your switch has the same model number.

• This is the genuine KDH115-031 switch for the electric recliner/lift chair, if your switch is the same model, you can replace it with this switch.
• The switch has 2 butterfly buttons, each button operates the up/down of a linear actuator, the switch is suitable for recliner/lift chairs which has 2 linear actuator motors.
• The switch has a USB socket that can be used to charge the phone/tablet.

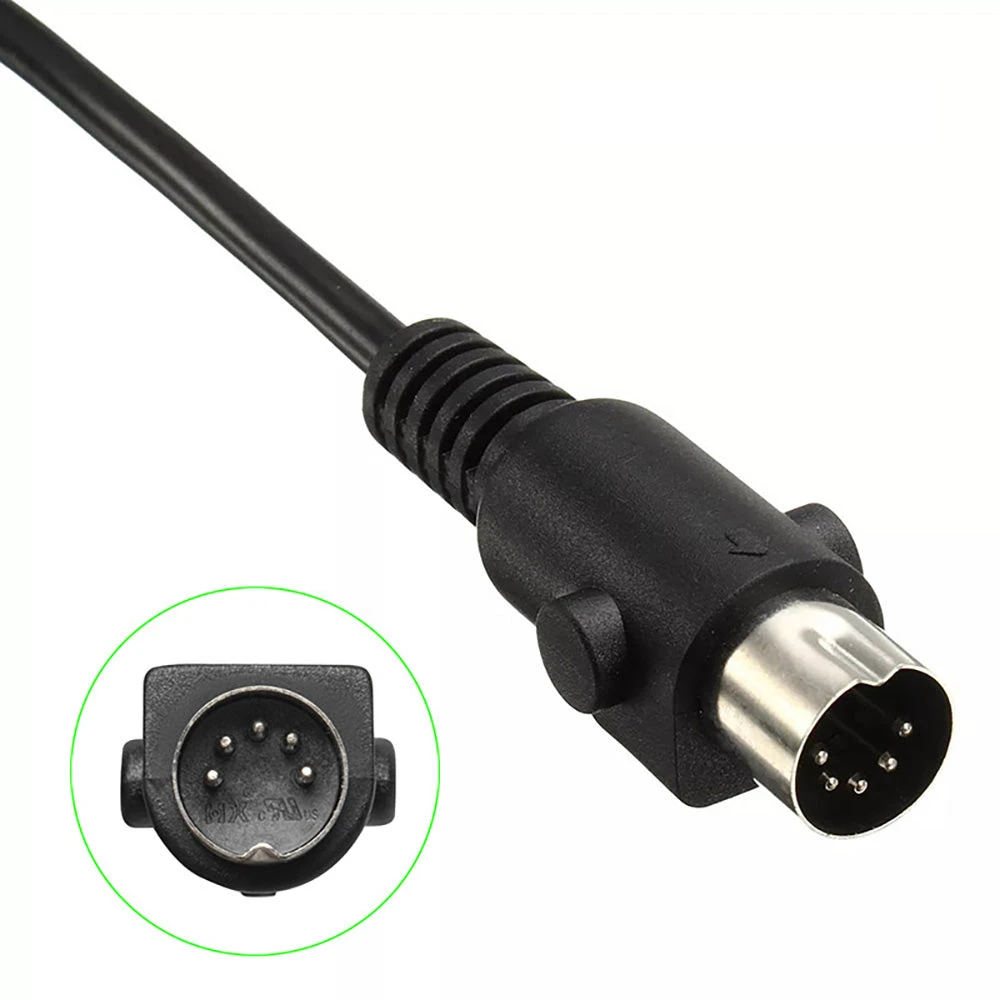

• The switch’s plug is a male five pin round plug

Note:

• The plastic cover of the switch is difficult to remove once it is locked. To facilitate your installation, the cover will be separated from the switch when shipping.
• When you are installing the switch, do not install the plastic cover until everything is done.
• After installing this switch in your chair, please operate all the actuator motors to the longest and shortest position a couple of times, so that the switch can identify the stroke of the motor.
• Avoid quick operation of the buttons: When responding to the switching operation, the current is large, and quick operation is more likely to cause damage to the switch.
