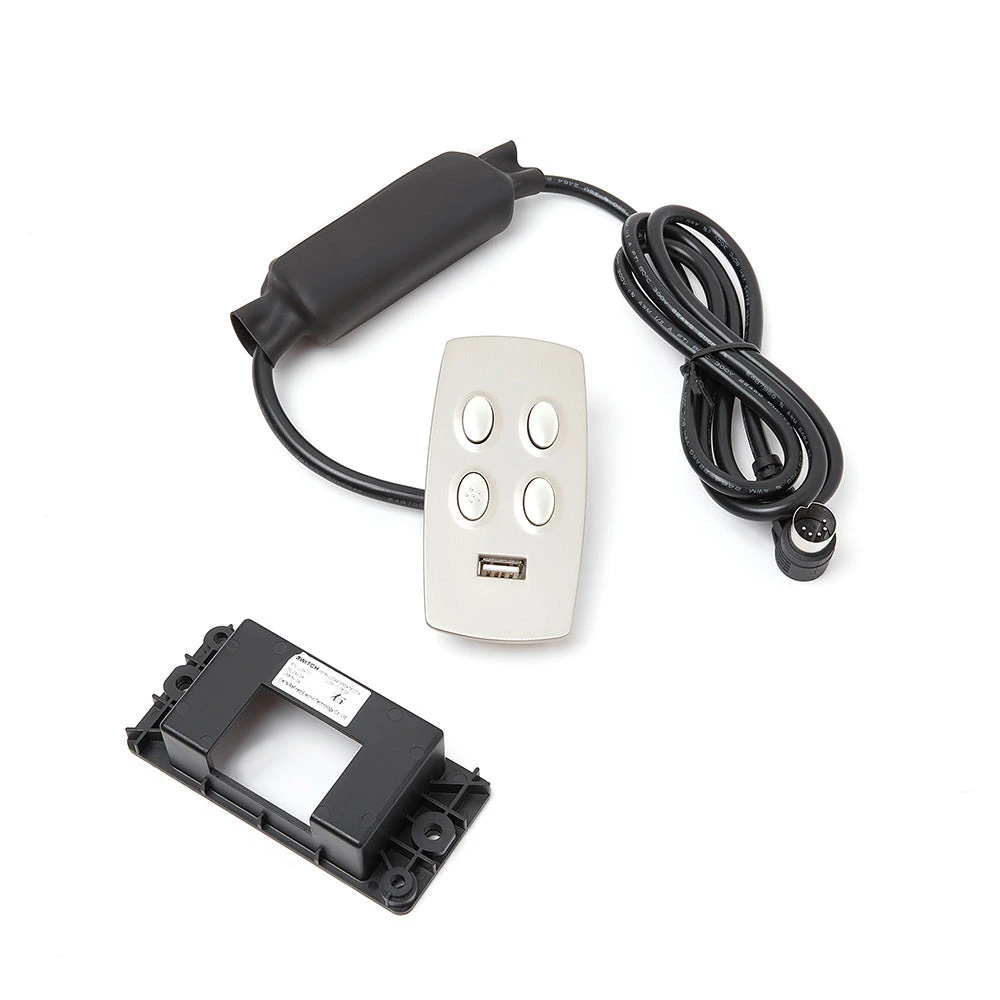

OKIN JLDK.17.05.25 Switch For Recliner Lift Chair 4 Buttons 5 Pin With USB

This is the genuine JLDK.17.05.25 Recliner Switch, if your switch has the same model number, you can use this switch to replace yours.

• The switch has 4 buttons, it is suitable for recliners or lift chairs which have 2 linear actuator motors.
• With a reset button, go back to the up-right position in a click
• The switch has a USB charging port, the output is 5V 2A, you can use it to charge your mobile device.
• The switch has a right angled 5 pin round plug.



Specifications

• Part Number: JLDK-17

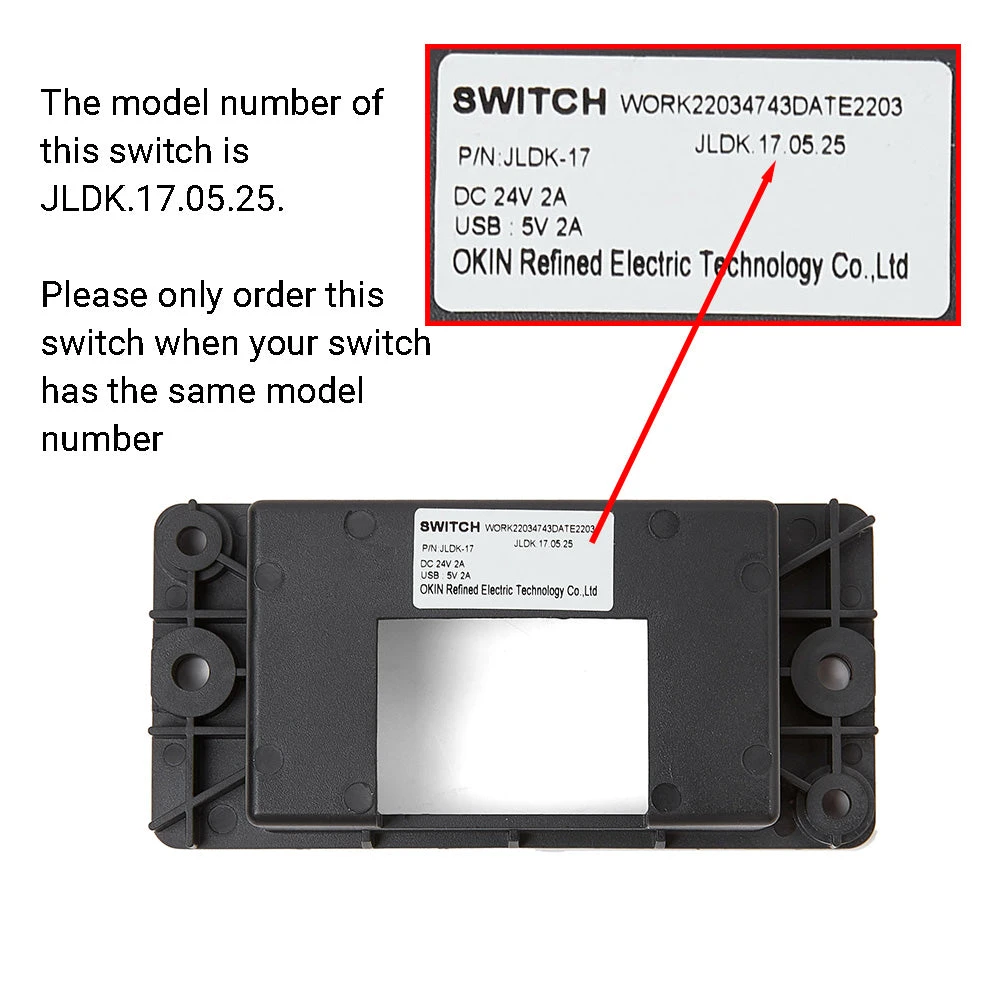

• Model number: JLDK.17.05.25
• Rated Voltage: 24V 2A
• USB: 5V 2A
• OKIN Refined Electric Technology Co., Ltd.



Note:

• The JLDK.17.05.25 is not a universal switch, please only order when your switch has the same model number.
• After installing this switch to your chair, please operate all the actuator motors to the longest and shortest position a couple of times, so that the switch can identify the stroke of the motor.
• Avoid quick operation of the buttons: When responding to the switching operation, the current is relatively large, and quick operation is more likely to cause damage to the switch.
