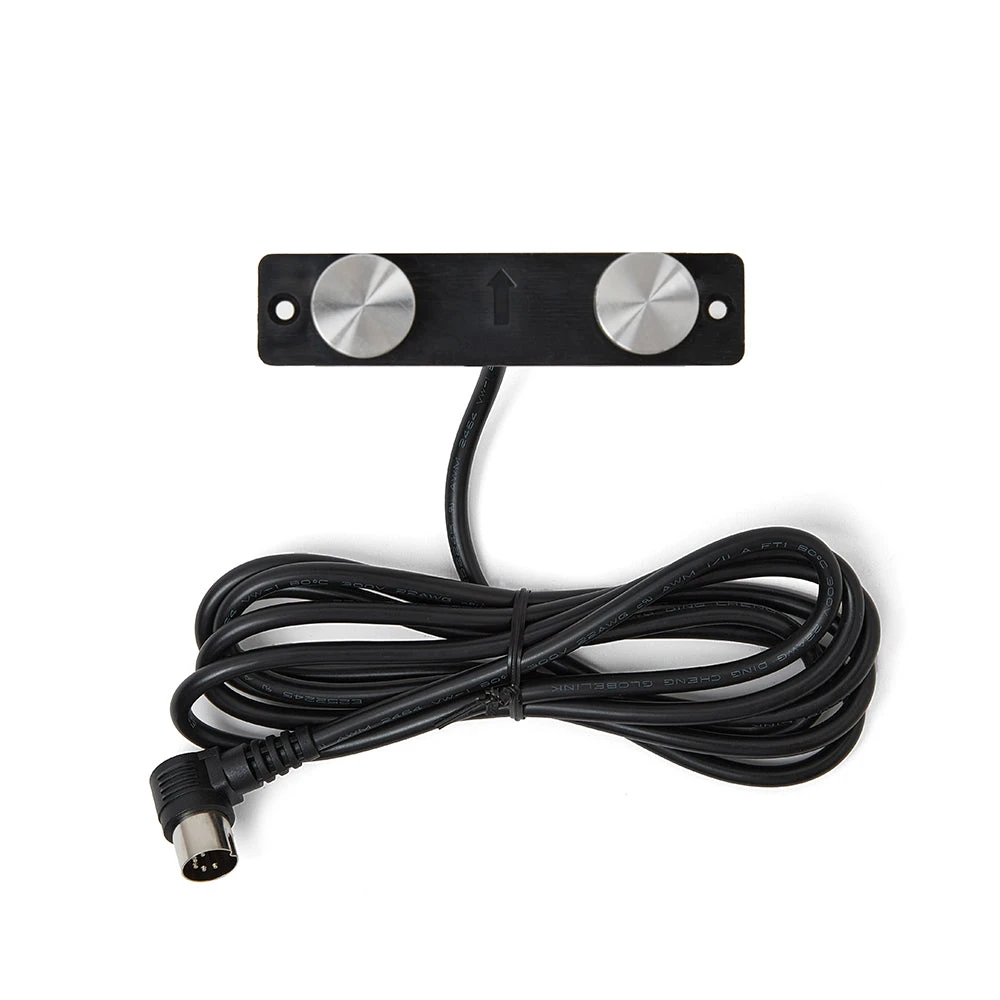

OKIN JLDK.24.02.09 Recliner Switch 2 Button

• This is the genuine JLDK.24.02.09 Recliner Switch, if your switch has the same model number, you can use this switch to replace yours.

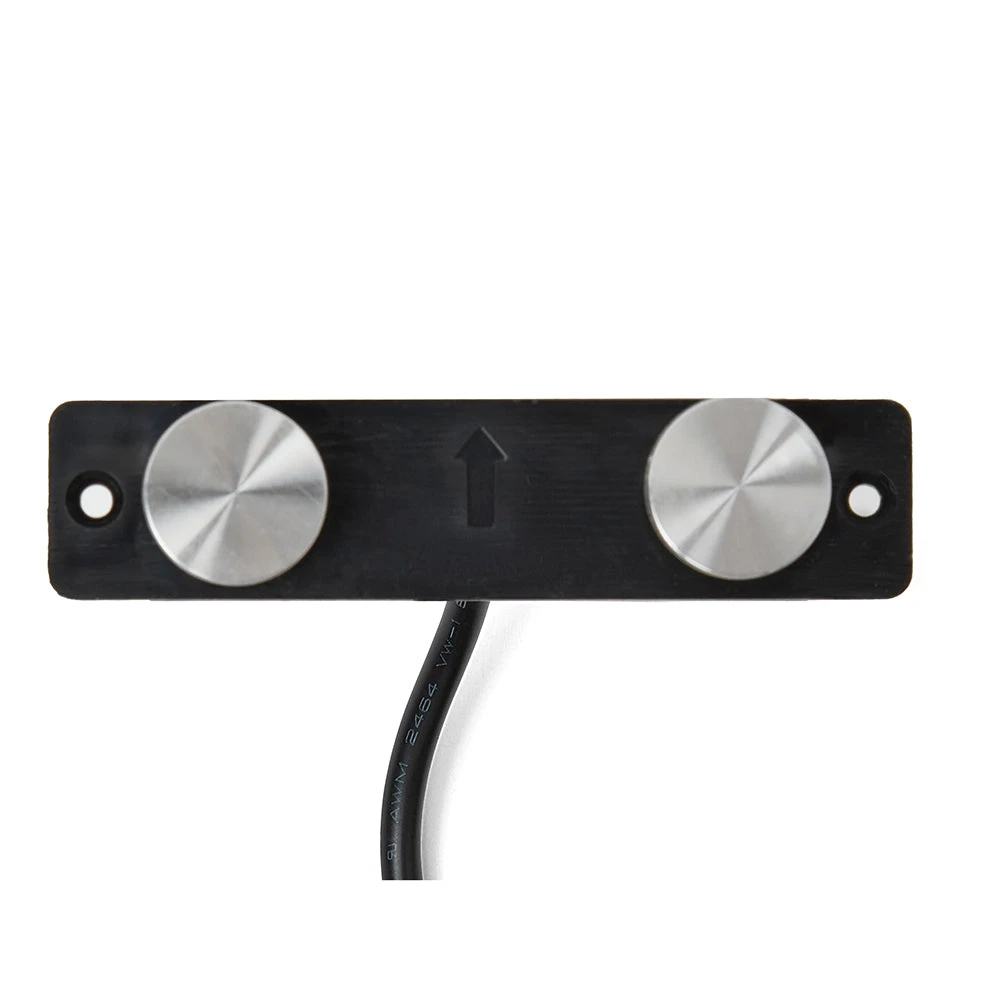

• The switch has 2 buttons, and it operates the up/down (open/close) of the recliner

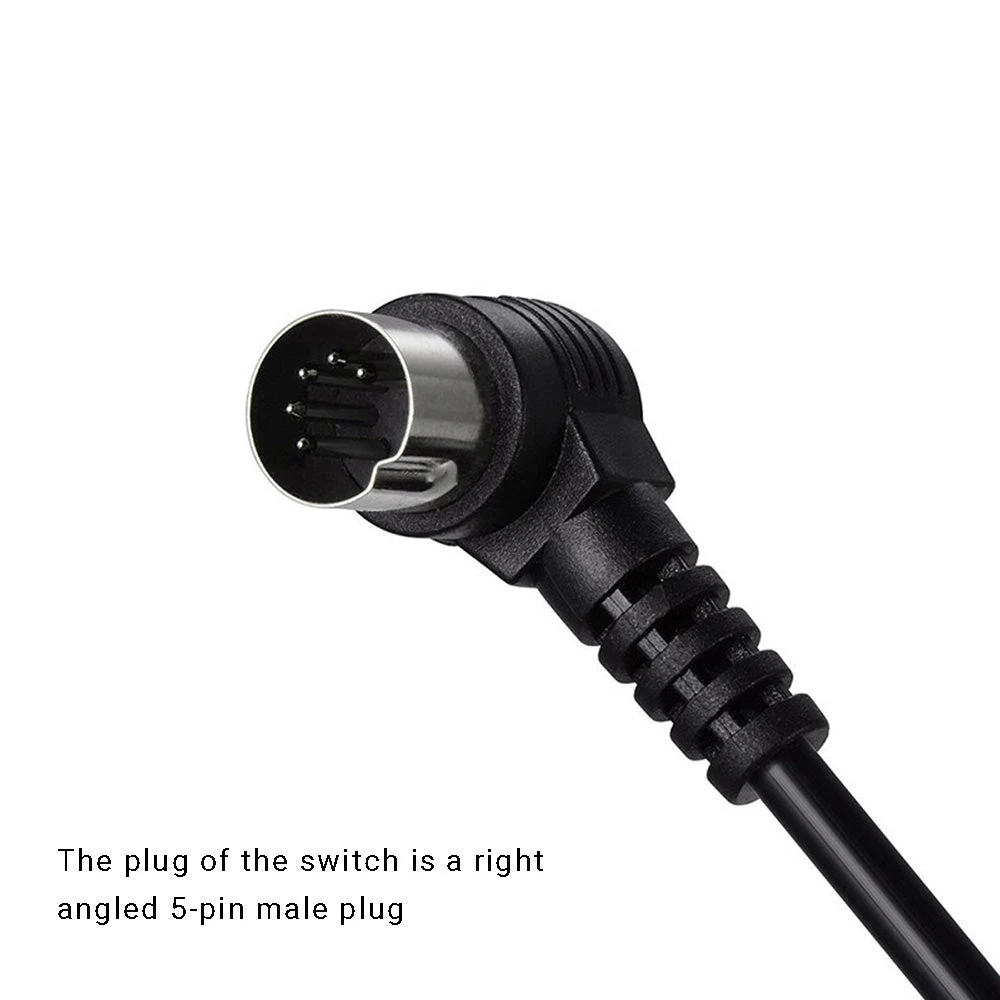

• The plug of the switch is a right-angled round 5-pin male plug

Specification

• Part Number: JLDK-24

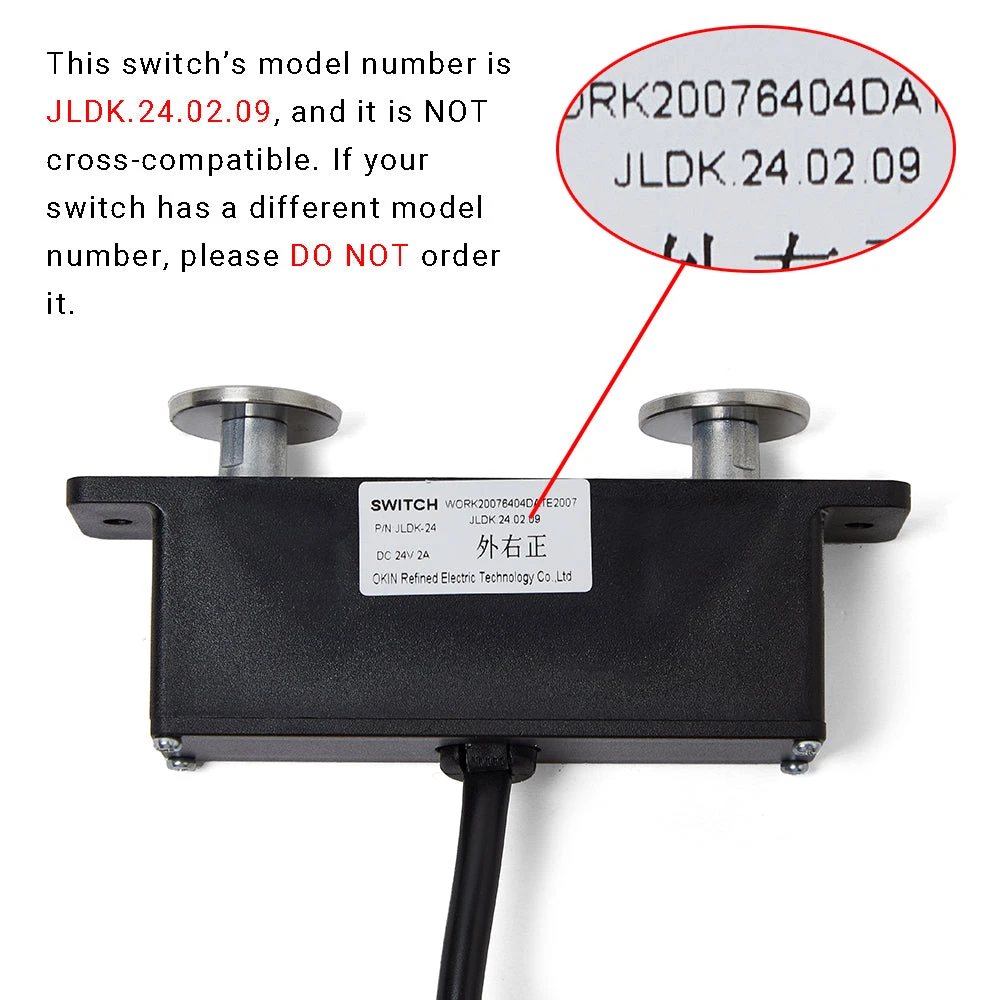

• Model number: JLDK.24.02.09
• Okin Refined Electric Technology Co., Ltd.
• Rated Voltage: 29V 2A

Note:

• The JLDK.24.02.09 is not a universal switch, please only order when your switch has the same model number.
• The plastic cover of the switch is difficult to remove once it is locked. To facilitate your installation, the cover will be separated from the switch when shipping.
• When you are installing the switch, do not install the plastic cover until everything is done.
• After installing this switch to your chair, please operate all the actuator motors to the longest and shortest position a couple of times, so that the switch can identify the stroke of the motor.
• Avoid quick operation of the buttons: When responding to the switching operation, the current is large, and quick operation is more likely to cause damage to the switch.
