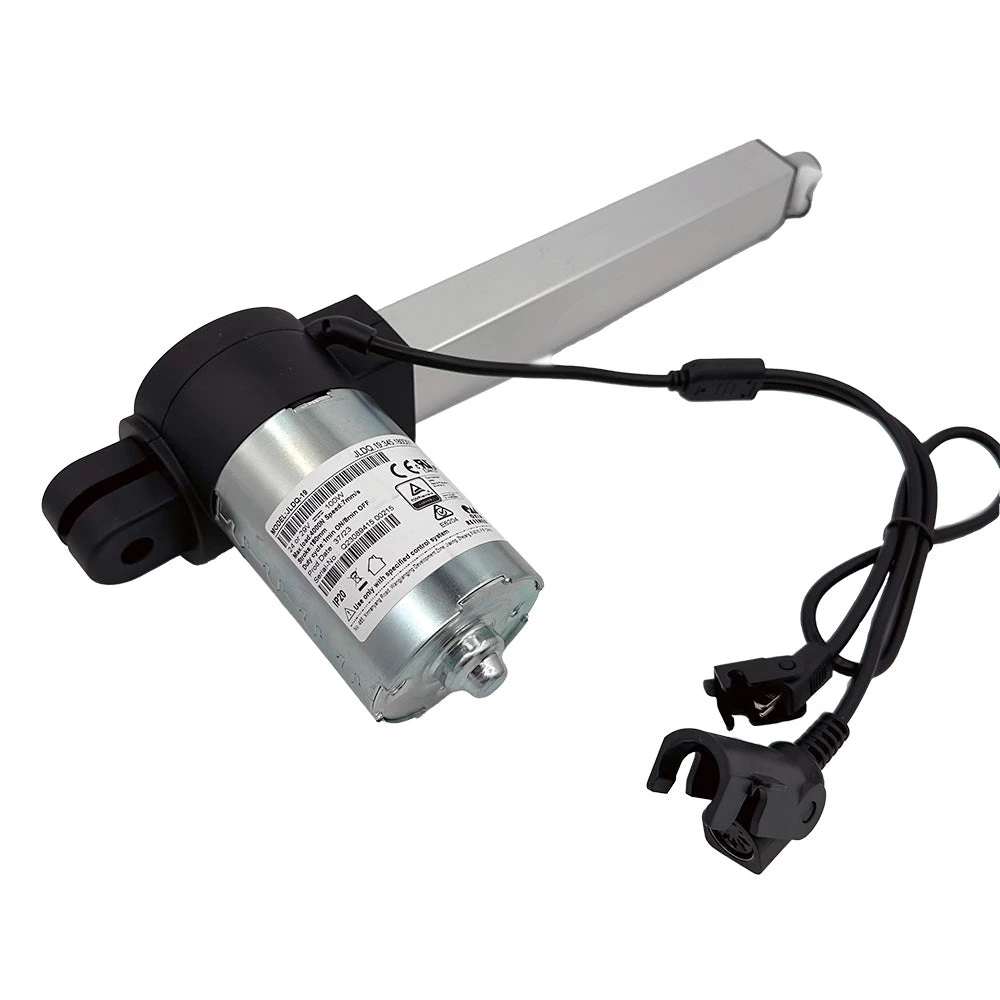

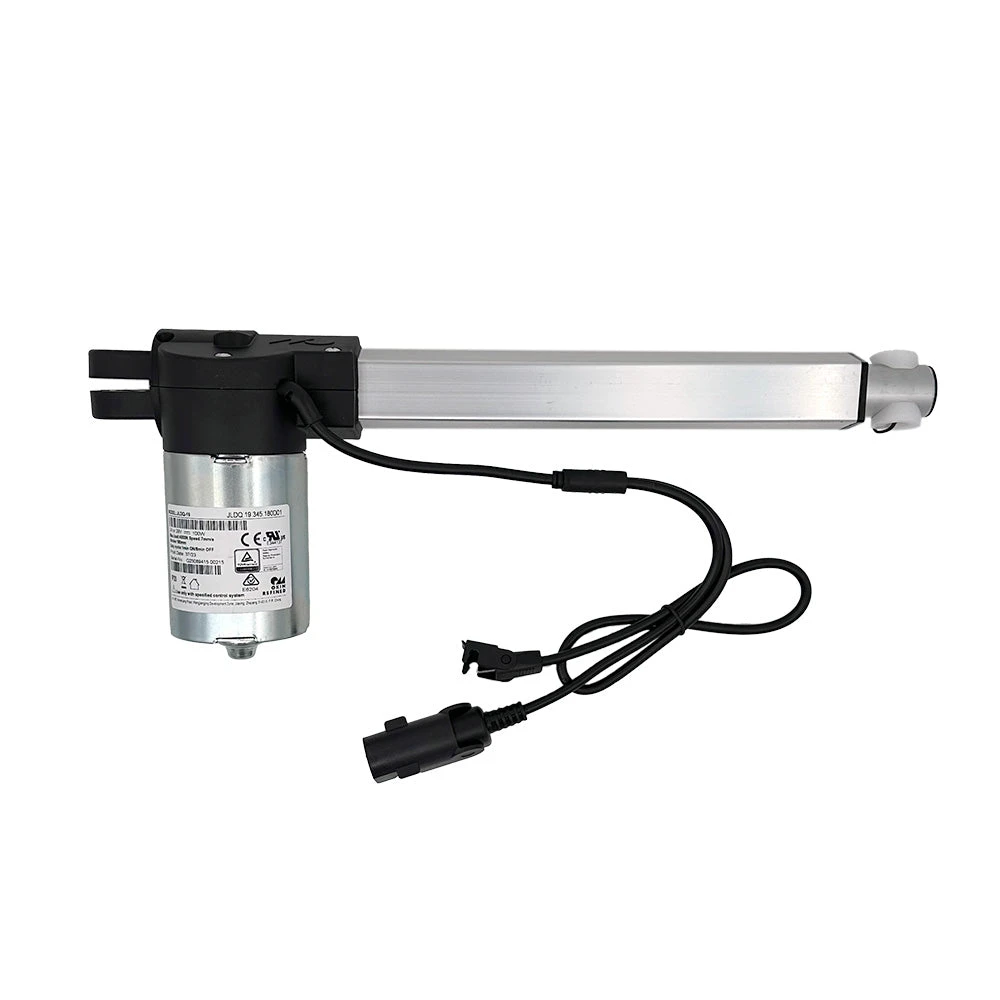

OKIN JLDQ.19.345.180D01 Linear Actuator For Recliner/Lift Chair

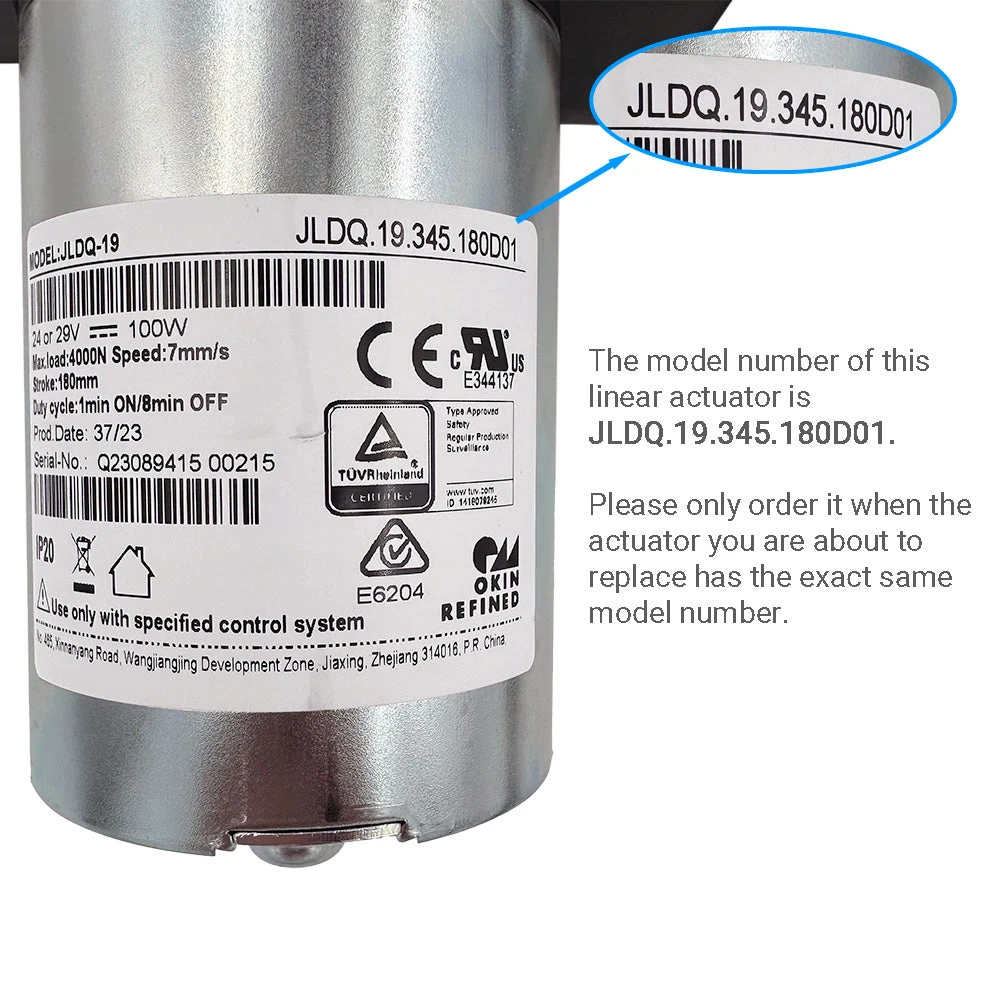

This is the genuine OKIN JLDQ.19.345.180D01 linear actuator. This actuator is a direct replacement of the OKIN JLDQ.19.345.180D01 linear actuator, as well as other JLDQ.19.345.180D0X models (such as JLDQ.19.345.180D02). If your model number is different, this actuator won’t be a suitable replacement.

Features

• Drive motor for your power recliner or lift chair’s raise/recline function.
• This actuator has two cables and plugs, the male 2 pin plug connects to the power adapter, the female 5 pin plug connects to the remote controller.

Specifications:

• Model: JLDQ-19
• Input: DC24 or 29V
• Power: 100W
• Max load: 4000N
• Speed: 7mm/s
• Stoke: 180mm
• Duty Cycle: 1min ON, 8min OFF



Important notice:

• Please note that this actuator does not accept returns or refunds, so we advise against purchasing it for testing purposes.
• Additionally, if your actuator’s model is not JLDQ.19.345.180D01 or does not start with JLDQ.19.345.180D0, please refrain from ordering this product.
• If you’re unsure whether this actuator is compatible with your chair, please contact us at [email protected] or call us at +8613802247190 to confirm.
• If you decide to purchase this product, please be aware that the lead time for delivery is 2-20 days, depending on stock availability.
• We ship from China using DHL/FedEx or similar methods, with shipping times of around 5-10 days. The shipping cost is 40 USD. However, if the shipping address is in the remote area list of the carrier, we can only ship through USPS.
• When placing your order, please provide a physical address and avoid using a P.O. Box address.
• If you’re located in Canada or Europe, please note that there will be a 20-30 USD importing tax/VAT collected by the shipping carrier before final delivery.
